100 liter tank

I have bought my first new aluminium framed tank

Se galleri

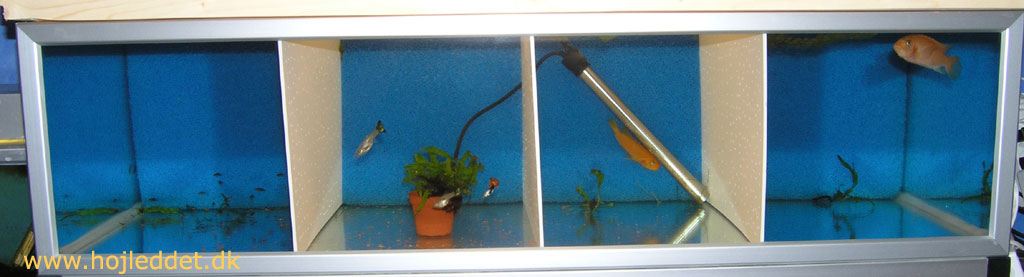

Here you see the first fish in the tank.
Here you see the first fish in the tank.

I bought this custom made tank in june 2004 to create a "perfect" finish on my small tank rack, while increasing the flexibility in uses, by using acrylic dividers in the tank. It was placed on top of my small tank rack, where I previously had 3 20 liter tanks and 2 12 liter tanks.

Technical details

The tank was filtered by a blue filter sponge mat measuring 100x25x5 cm. It had 4 separate air-lifts placed along the back of the tank. It was heated by a 100W Via Aqua steel heater with a separate sensor and an outside temperature regulator. The lighting was handled by a 18 Watt fluorescent tube mounted above the tank. There was also a 5 W low-energy light bulb to give a dusk like lighting before and after the main light came on. The lighting was controlled by two week timers.

Interior

The tank was without substrate and decorations, but it was divided in 4 separate compartments. I made the dividers from an acrylic plate which I bought in Jem og Fix. I cut it in the right size and made lots of small holes in each plate to ensure the water flow between each compartment. Apart from dividing the tank, the plates also kept the filter mat in place.

Plants

I only used floating plants like Hornwort (Ceratophyllum demersum) and Najas guadalupensis. They are both very fast growing and contributes to the water quality by using the surplus nutrients in the tank.

Use cases

I used the tank for growing out fry and as a temporary living quarter for fish there was up for sale.

Faktatabel

Quick Stats
Purchased

Juni 2004

Length

97,5 cm

Height

25

Width

40

Condition

New

Purpose

Grow out tank

Billedgalleri

The plates for dividing the tank into 4 rooms is made from an acrylic plate that I bought in Jem og Fix for 40 DKK.

The plates for dividing the tank into 4 rooms is made from an acrylic plate that I bought in Jem og Fix for 40 DKK.

Here you see the first fish in the tank.

Here you see the first fish in the tank.

Here you can see the blue filter mat mounted with 4 air-lift tubes.

Here you can see the blue filter mat mounted with 4 air-lift tubes.

100 liters breeding tank in custom size.

100 liters breeding tank in custom size.

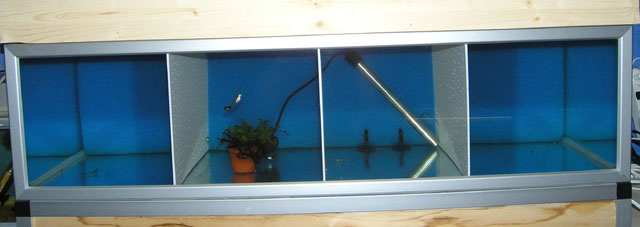

Here the tank is filled, but without filters and sub section dividers.

Here the tank is filled, but without filters and sub section dividers.

This is the first tank ever I didn't test for leaks before setting it up. In the picture, you can see the tank getting filled.

This is the first tank ever I didn't test for leaks before setting it up. In the picture, you can see the tank getting filled.

Now the tank has been put in place, but there is lacking light shielding in the sides and a cabinet door.

Now the tank has been put in place, but there is lacking light shielding in the sides and a cabinet door.

Comments

Diskussion
Vi gennemser alle kommentarer.
B
Brian
2007-04-23 20:07:49
Hej. Hvor tyk er din acryl plade? Hvor kan man købe et reol system? Hvor lang tid skal der gå fra der bruges silikone til akva må bruges? Håber du kan give svar.
Aquainfo
Jeg mener den er 5 mm tyk. Reol systemer kan man bygge selv og stumperne kan købes direkte hos Porsa eller hos de fleste byggemarkeder. Hvis man vil købe reolen færdig kan man formentlig købe det hos en akvariebutik. Silikone skal tørre minimum 24 timer, gerne 48 timer.
B
Brian
2007-04-07 03:42:57
Hej. Hvordan har du sat pladerne fast? sider de i spænd eller hvad. Hvor lille har du boret hullerne? ynglet kan vel svømme ind til hinanden.
Aquainfo
Pladerne sidder i spænd mellem frontruden og svampen der står op af bagruden. Hullerne er boret med et 2mm bor og yngel af ungefødende og mundrugere kan ikke svømme igennem. Til gengæld er der enkelte steder hvor silikonen forhindrer pladen i at komme helt tæt på ruden og der kan ungerne ind i mellem komme igennem.
J
Jacob
2006-08-23 15:41:44
Okay. Jeg troede det var guppyunger :-)
Aquainfo
Det er heller ikke helt nemt at se på billedet, men guppyunger er det i hvert fald ikke.
J
Jacob.
2006-08-21 16:49:21
Hvad for nogle unger har du i akvariet ? Helt til venstre i akvariet.
Aquainfo
Det må være unger af Cynotilapia afra sp. "yellow top", hvis jeg husker korrekt.
